Other

KYW100

KYW100

Max Anode Voltage4-30kVBe Window Thickness200μm
Anode Current1mACone  Angle20°
Max Power20WFocal Spot Size1x1mm
Filament Current1.7VGrounding MethodAnode grounding
Nominal Filament Voltage2.5@20kV,1mA Anode MaterialAg, Mo, Cu, Rh, W, Ti


Consult Now

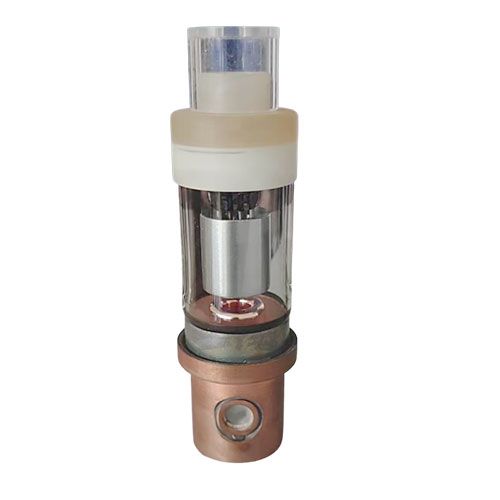

KYW700 Water Cooling Tube Series

KYW700 Water Cooling Tube Series

Max Anode Voltage10-50kVBe Window Thickness500μm (200μm options available)
Anode Current0-5mAAnode MaterialW,Mo,Rh,Ag(Other materials available)
Max Power250W

Cooling Method

Water temperatur

Water Coling

<30℃，Water flow>0.5L/m

Focal Spot Size2mmMax Package Temperature55℃
Nominal Filament Voltage2.5V@50kV,5mA Grounding MethodGrounded Anode
Filament Current2.5ADimensionФ72x323
Cone  Angle20°Approximate Weight3.5kg
Consult Now
