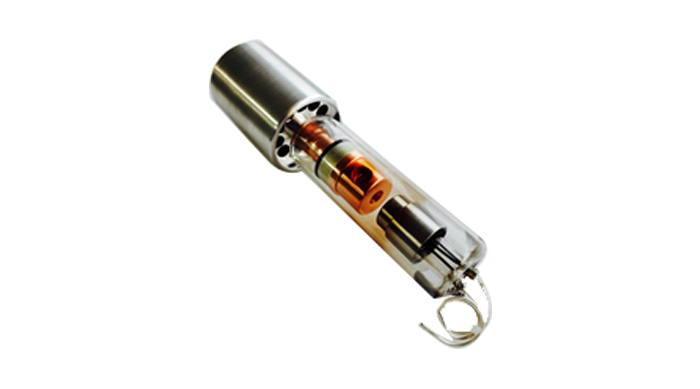

X-Ray Tube dedicated for Measurement of Concentricity

This series of X-Ray tube is applicable for measurement of concentricity by SIKORA instrument and particularly compatible for SKORA X-Ray 8000 NXT in terms of installation dimension and technical specification. The tube is featured with small focal size.

Product Specifications:

Anode Voltage：60kV

Anode Current：2mA

Max Power：100W

Focal Spot Size：100μm

Filament Current ：20kV/1mA If≈ 1.7A

Nominal Filament Voltage：≈2.5V

Cone Angle：20°

Window Type：Glass

·       Target：W

·       Dimensions：Ф40x225

·       Approximate Weight：0.9kg
