Liquid Level Measurement


Liquid Level Measurement

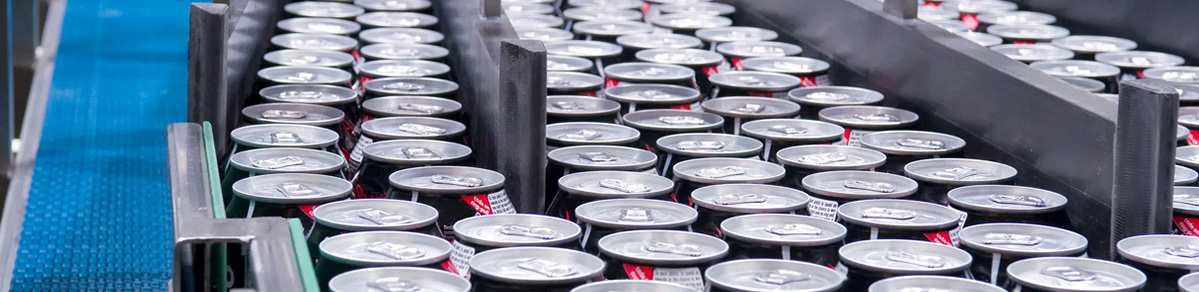

Be used for height measurement of canned liquids, suitable for various canned beverage factories, and suitable for continuous production lines.

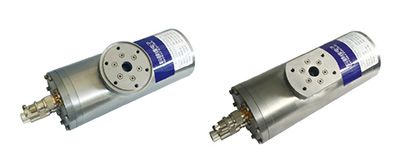

KYW2000A

KYW2000A

Max Anode Voltage50kVBe Window Thickness200μm(100μm options available）
Anode Current0-1mAAnode MaterialW,Mo,Rh,Ag(Other materials available）
Max Power50WCooling MethodForced air @ 150 CFM
Focal Spot Size1*1mm(100μm options avaiable)Max Package Temperature55℃
Nominal Filament Voltage2.5V@50kV,1mAGrounding MethodGrounded Cathode
Filament Current1.7ADimensionФ72x178
Cone  Angle20°Approximate Weight2.2kg
