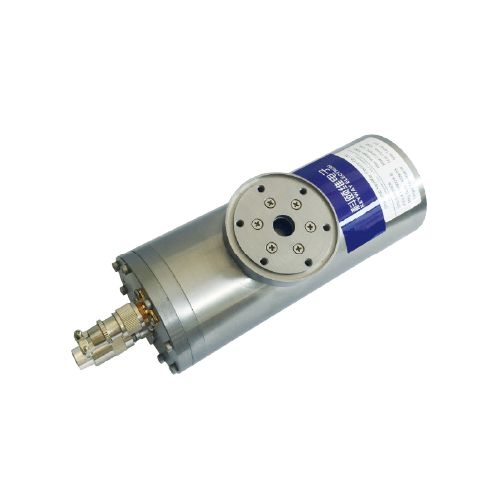

KYW2000AX Small Focal Spot Tube Series

The KYW2000AX Series X-Ray tube is a multi-use, low-power, side-window X-Ray tube. On basis of KYW200A Series, its packaging and tube core is further upgraded to match the narrow focal spot size. The tube is packaged in a stainless steel casing lined with lead.

The tube is in wide use by the industry and science sector for RoHS inspection, X-Ray fluorescence analysis, and etc. It is specifically recommended that the tube be used for PCB inspection, XRF coating thickness measurement, drilling machine, and inspection machine for PCB industry.

Consult Now Next Product

Scope of Application Technical Specification

Scope of Application:

X-Ray Imaging

Technical Specification:

Max Anode Voltage	4-50kV	Be Window Thickness	200μm (100μm options available)
Anode Current	0-1mA	Anode Material	W,Mo,Rh,Ag(Other materials available）
Max Power	50W	Cooling Method	Forced air @ 150 CFM
Focal Spot Size	100μm	Max Package Temperature	55℃
Nominal Filament Voltage	2.5V@50kV,1mA	Grounding Method	Grounded Cathode
Filament Current	1.7A	Dimension	Ф72x178
Cone Angle	17°	Approximate Weight	2.2kg
